- Size: 15
- Place of Origin: CHINA
- Brand Name: Jinan Gete Machinery Equipment Co.,Ltd
- Model Number: GT-A-5
- Weight: 6000.000 kg

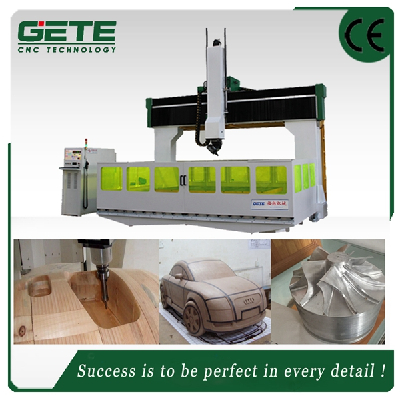

Model | G-5-1325 |
Machine dimensions | 4500*2900*3800mm |
XYZ working area | 1300*2500*1000mm/1200mm feeding height |
B/C axis travel | B:±185°,C: ±320° |
Table size | 1300*2500mm |
Transmission | X/Y/Z HIWIN 40mm ball screw |
Table structure | Aluminum (with T-slot) |
Spindle power | 10-12.0KW HITECO Italy |
Inverter | 11KW Delta |
Spindle speed | 22000 r/min |
Spindle type | Double swing head |
Software | POWERMILL |
Control system | Taiwan SYNTEC control system |
Fast moving speed | 40 / 40 / 20m/min |
Max. operating speed | 20m/min |
ATC type | Disk 8 bits tools |
Drive System | Japanese servo motor |
Voltage | AC380/3PH/50HZ |
RTCP | Our program can do this function |
XYZ reposition precision | 0.01mm/1000mm |
Editor | Servo editor absolute value |
Suitable material | Wood, foam, aluminum |
- Size: 15
- Place of Origin: CHINA
- Brand Name: Jinan Gete Machinery Equipment Co.,Ltd
- Model Number: GT-A-5
- Weight: 6000.000 kg
